Xenon Headlamps
Safety Precautions
The following safety precautions must be followed when working on the xenon headlamp system:
- DO NOT attempt any procedures on the xenon headlamps when the lights are switched on.
- Handling of the D3S Xenon bulb must be performed using suitable protective equipment, e.g. gloves and goggles. The glass part of the bulb must not be touched.
- Only operate the lamp in a mounted condition in the reflector.
The xenon headlamps use a complex surface reflector for the Halogen fill in high beam lamp only lighting unit, which is of the same design as the high beam unit used on the Halogen headlamps. This type of reflector has the reflector divided into separate parabolic segments, with each segment having a different focal length.
The high beam bulbs are quartz halogen H7, with a rating of 55W. The bulbs are retained in the headlamp unit with conventional wire retaining clips.
The Bi-Xenon™ (the Bi-Xenon™ trademark is the property of Hella KGaA Hueck & Co., Germany) projector module headlamp operates as both low beam and high beam headlamp unit. The Xenon lamp (or High Intensity Discharge (HID) lamp), comprises an ellipsoidal lens with a solenoid controlled shutter to change the beam output from low to high beam. The bulb is retained with a locking ring which must be rotated to facilitate removal of the D3S bulb.
The xenon headlamp system is controlled by the CJB using a control module for each headlamp and an igniter. The control modules and the igniters provide the regulated power supply required to illuminate the xenon bulbs through their start-up phases of operation.

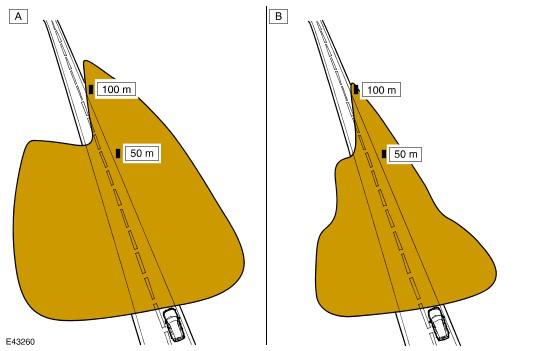

Xenon/Halogen Headlamp Beam Comparison
| Item Number | Description |
|---|---|
| A | Xenon |
| B | Halogen |
The Xenon low/high beam headlamps use ellipsoidal technology for the lens and reflector providing improved night time visibility compared to conventional halogen headlamps. The Xenon headlamps provide the following benefits when compared to halogen headlamps:
- Longer bulb life - Approximately 3 to 5 times longer than a halogen bulb
- Increased light output - Xenon headlamps output 3 to 4 times more light on the road surface than halogen headlamps
- Blue/White light which is closer to natural daylight - Xenon lamps produce a blue/white light compared to a yellow light produced by a halogen bulb
- Improved night time driving visibility - Xenon lamps produce a wider and brighter beam in front of the vehicle than conventional halogen bulbs
- Lower running temperatures
- Lower power consumption
- Mercury free.

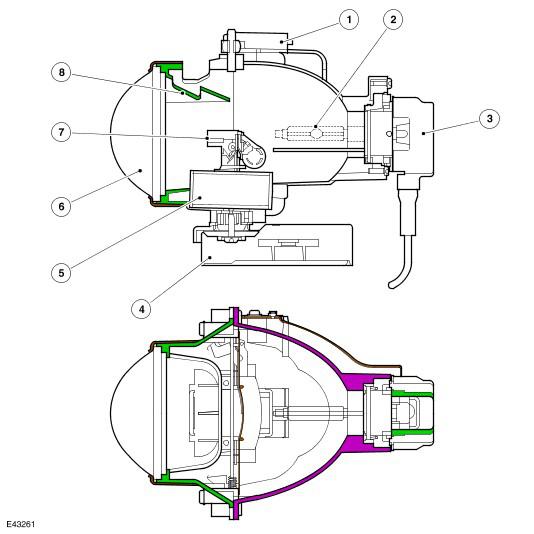

Xenon Headlamp Construction
| Item Number | Description |
|---|---|
| 1 | Bracket |
| 2 | D3S xenon bulb |
| 3 | D3S connector |
| 4 | Swivel actuator (AFS lamp only) |
| 5 | Solenoid |
| 6 | Aspheric lens |
| 7 | Shade |
| 8 | Shade |
| 9 | Lens support |
The Xenon headlamp is a self contained unit located within the headlamp assembly. The unit comprises a reflector, an adaptor ring, the lens, a shutter controller and the Xenon 35W D3S bulb, which as an assembly is known as the projector module.
The reflector is curved and provides the mounting for the xenon bulb. The bulb locates in a keyway to ensure correct alignment in the reflector and is secured by rotating a locking ring on the projector module to lock. The bulb has a pin connector which is a push to lock fitting.
The shutter controller is a solenoid which operates the shutter via a lever mechanism. The shutter is used to change the beam projection from low beam to high beam and visa versa.
A tourist lever mechanism is located on the right hand side of the projector module. This mechanism moves to blank off a portion of the beam spread to enable the vehicle to be driven in opposite drive hand markets without applying blanking decals to the headlamp lens. The beam is changed by removing the access cover at the rear of the lamp assembly and moving a small lever located near the bulb holder, at the side of the projector module. Make sure that the headlamps are off before removing the access cover.
The Xenon bulbs illuminate when an arc of electrical current is established between two electrodes within the bulb. The xenon gas sealed in the bulb reacts to the electrical excitation and the heat generated by the current flow. The xenon gas reaction to the controlled current flow between the electrodes produces the blue/white light.
To operate at full efficiency, the xenon bulb goes through three stages of operation before full output for continuous operation is achieved. The three phases are; start-up phase, warm-up phase and continuous phase.
In the start-up phase, the bulb requires an initial high voltage starting pulse of 18000 to 28000 volts to establish the arc. This is produced by the igniters. The warm-up phase begins once the arc is established. The Xenon control modules regulate the supply to the bulbs to 2.6A which gives a lamp output of 75W. During this phase, the Xenon gas begins to illuminate brightly and the environment within the bulb stabilizes ensuring a continual current flow between the electrodes. When the warm-up phase is complete, the xenon control modules change to continuous phase. The supply voltage to the bulb is reduced and the operating power required for continual operation is reduced to 35W.
The Xenon system is controlled by the CJB, the two xenon control modules and the two igniters. The xenon control modules (one per headlamp) receive an operating voltage from the CJB when the headlamps are switched on. The modules regulate the power supply required through the phases of start-up.
The igniters (one per headlamp) generate the initial high voltage required to establish the arc. The igniters have integral coils which generate high voltage pulses required for start-up. Once the xenon bulbs are operating, the igniters provide a closed circuit for regulated power supply from the control modules.
