Rear Lamp Assembly: Notes

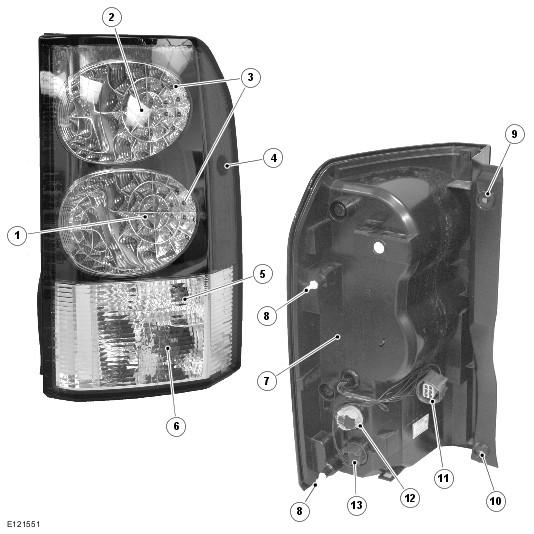

| Item Number | Description |
|---|---|
| 1 | Turn signal indicator lamp LED's |
| 2 | Stop lamp LED's |
| 3 | Side lamp LED's |
| 4 | Side marker lamp (NAS only) |
| 5 | Reverse lamp |
| 6 | Fog lamp |
| 7 | Side marker lamp bulb holder (NAS only) |
| 8 | Location studs |
| 9 | Attachment hole |
| 10 | Attachment hole |
| 11 | Electrical connector |
| 12 | Reverse lamp bulb holder |
| 13 | Fog lamp bulb holder |
The rear lamp assembly is a one piece unit which contains a stop lamp, a rear side lamp, a turn signal indicator lamp, a second rear side lamp, a reversing lamp and a fog lamp. Light Emitting Diode (LED)'s are used for the tail lamp, stop lamp and turn signal indicator lamp. Reversing lamp and fog lamp use bayonet fitting bulbs. These are located in holders which fit into the applicable hole in the lamp housing and are locked by rotating. Each bulb holder is connected by wires to a connector on the rear of the lamp housing.
The rear lamp assembly is located in a recess in the vehicle body. Two studs on the outer edge of the lamp housing locate in the vehicle body. The lamp is secured with two screws which are located on the inner edge of the lamp housing, near the tailgate aperture.
