Adaptive Front Lighting Module: Removal

  1. Passenger side: Remove the cowl side trim panel. Refer to Cowl Side Trim Panel .
  2. Remove the CJB. Refer to Central Junction Box (CJB) .

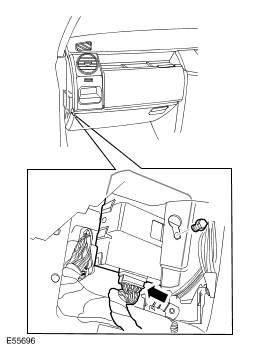

  3. Remove the adaptive front lighting module.
    • Disconnect the electrical connector.
    • Remove the bolt.
    GJ0015304
