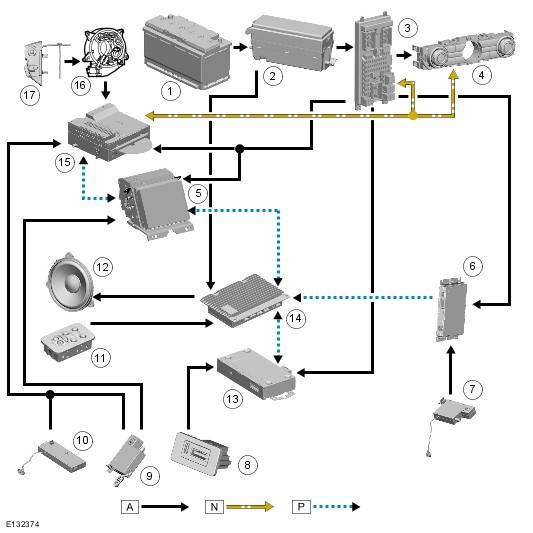

Head Unit (HU) - Audio Control Diagram
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | BJB |
| 3 | CJB |
| 4 | Lower integrated control panel |
| 5 | Touch screen display |
| 6 | DAB/SDARS tuner module |
| 7 | DAB antenna amplifier |
| 8 | Portable audio interface consol |
| 9 | FM antenna amplifier |
| 10 | AM/FM diversity antenna amplifier |
| 11 | Row two/three remote audio controls |
| 12 | Speakers |
| 13 | Portable audio interface module |
| 14 | Power amplifier |
| 15 | Head Unit (HU) |
| 16 | Clock spring |
| 17 | Audio control switches |
