Low Line Audio System

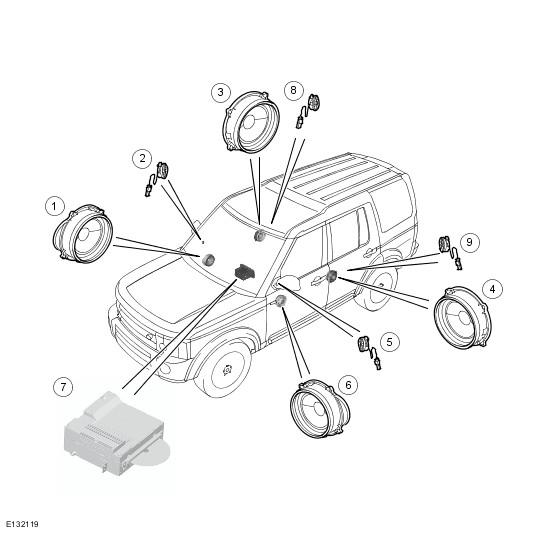

Low Line Audio System Speaker Component Location
| Item Number | Description |
|---|---|
| 1 | Front RH door mid/bass speaker |
| 2 | Front RH door tweeter |
| 3 | Rear RH door full range speaker |
| 4 | Rear LH door full range speaker |
| 5 | Front LH door tweeter |
| 6 | Front LH door mid/bass speaker |
| 7 | Head unit |
| 8 | Rear RH door tweeter |
| 9 | Rear LH door tweeter |

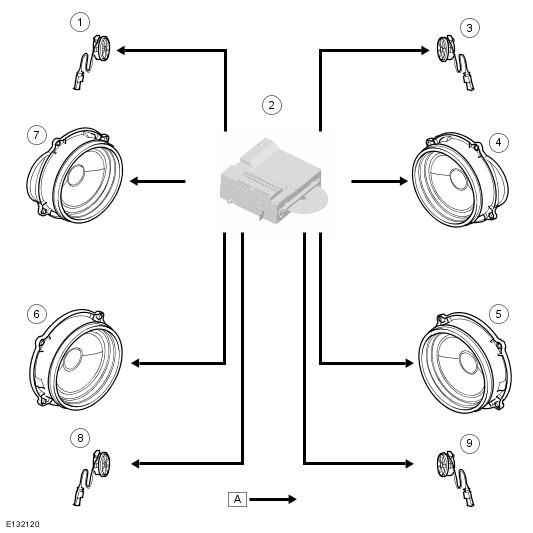

Low Line Audio System Speaker Control Diagram
NOTE:
A = Hardwired
| Item Number | Description |
|---|---|
| 1 | Front LH tweeter |
| 2 | Head unit |
| 3 | Front RH tweeter |
| 4 | Front RH mid/bass speaker |
| 5 | Rear RH full range speaker |
| 6 | Rear LH full range speaker |
| 7 | Front LH mid/bass speaker |
| 8 | Rear LH tweeter |
| 9 | Rear RH tweeter |
The low line audio speaker system is driven directly from the audio head unit See Audio System .
The system comprises:
- Head unit
- Two front door mounted mid/bass speakers (one per side)
- Two front door mounted tweeters (one per side)
- Two rear door mounted full range speakers (one per side)
- Two rear door mounted tweeters (one per side)
