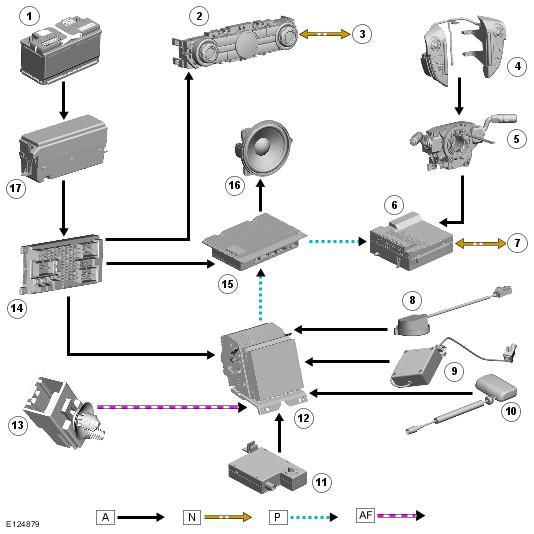

Control Diagram
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST; AF
= Firewire.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Integrated control panel, incorporating navigation switch |
| 3 | Medium speed CAN bus connection to other vehicle systems |
| 4 | Steering wheel switches |
| 5 | Clockspring |
| 6 | IHU (integrated head unit) |
| 7 | Medium speed CAN bus connection to other vehicle systems |
| 8 | Microphone - voice recognition |
| 9 | GPS antenna |
| 10 | VICS beacon antenna - Japan only |
| 11 | 'TMC (traffic message channel tuner' or 'VICS receiver - Japan only' |
| 12 | TSD (touch screen display) |
| 13 | Navigation update socket |
| 14 | CJB (central junction box) |
| 15 | Power amplifier |
| 16 | Speakers |
| 17 | EJB (engine junction box) |
