Navigation System Antenna: Removal

  1. Remove the battery ground cable. Refer to Specifications .
  2. Remove the high mounted stoplamp. Refer to High Mounted Stoplamp .
  3. Remove the liftgate trim panel.
    • Release the 4 clips.
    GJ0019046

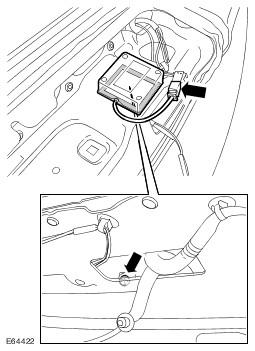

  4. Remove the navigation system antenna.
    • Remove the screw.
    • Release and disconnect the electrical connector.
    • Cut through the adhesive retaining pad.
    GJ0019764
