Tailgate Speaker: Removal

  1. Remove the tailgate trim panel. Refer to Tailgate Trim Panel .

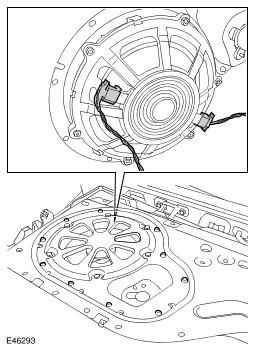

  2. Remove the tailgate speaker assembly.
    • Remove the 10 Torx bolts.
    • Disconnect the 2 electrical connectors.
    GJ0016980
    3. NOTE: Do not disassemble further if the component is removed for access only.
  3. Remove the tailgate speaker.
    • Remove the 6 bolts.
    GJ0016981
