C-Pillar Lower Trim Panel: Removal

  1. Fold down the rear seat backrest.
  2. Remove the loadspace trim panel RH. For additional information, refer to: Loadspace Trim Panel RH (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Release the door aperture weatherstrip.

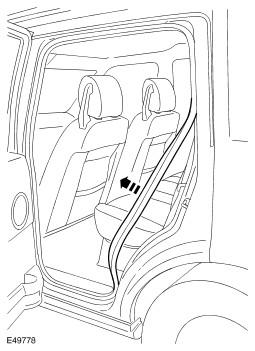

    GJ0019184
  4. Release the safety belt anchor.
    • Remove and discard the bolt.
    GJ0019185
  5. Release the tailgate aperture seal.

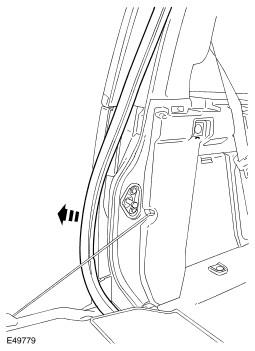

    GJ0019186
  6. Remove the support spigot from the tailgate.
    • Release the clip.
    GJ0019187
  7. Remove the C-pillar lower trim panel.
    • Remove the Torx screw.
    • Release the 8 clips.
    • Disconnect the 2 electrical connectors.
    GJ0019188
    8. NOTE: Do not disassemble further if the component is removed for access only.
  8. Remove the stowage tray.
    • Release the cover.
  9. Remove the audio control switch.
    • Release the 2 clips.
  10. Remove the accessory socket.
    GJ0019189
