Third Row Seat: Removal

NOTE: Third row seats must be removed as a pair.

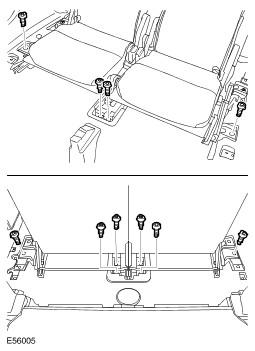

Remove the loadspace compartment anchors.
- Remove the 4 Torx bolts.
Remove the loadspace trim panels.
- Release from the 4 clips.

NOTE: Torx bolts may be re-used.

Remove the third row seats.
- Release the trim cover.
- Remove the 10 Torx bolts.

NOTE: Do not disassemble further if the component is removed for access only.

Separate the third row seats.
- Remove the seat frame finisher.
- Drill out the 6 rivets.
- Remove the 2 brackets.
