Front Seat Recliner Motor: Removal

  1. Remove the front seat backrest cover. See Front Seat Backrest Cover .
  2. Remove the front seat backrest pad.

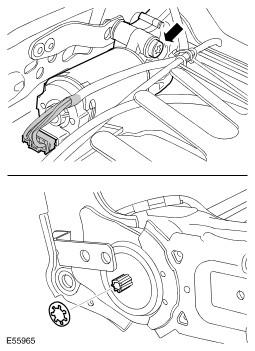

  3. Remove the front seat recliner motor.
    • Disconnect the electrical connector.
    • Remove the Torx bolt.
    • Remove the front seat backrest shaft clip.
    • Remove the front seat backrest shaft.
    GJ0014626
