Front Seat Manual Height Adjustment Lever: Removal
- Remove the drivers side seat slides. See Seat Track - Vehicles With: Power Seats .
- Remove the front seat cushion base. See Front Seat Cushion .
- See figure.
- See figure.
- TORQUE: 25 Nm

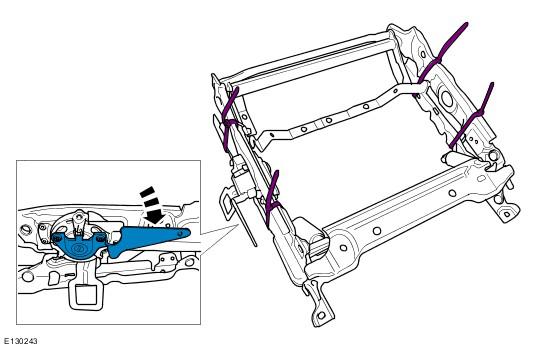

- Secure the seat base using the 4 tie straps supplied, as shown.
- Using the seat height adjuster, lower the seat base to its lowest position.
- Release the arm from the height adjuster.
- Remove the Torx bolt.
- Drill out the 4 rivets.
CAUTION:
Tie straps must be fitted, failure to follow this instruction may result in personal injury.
CAUTION:
Failure to follow this instruction may cause damage to the vehicle.
