Engine Wiring Harness (5.0L NA V8 - AJ133/5.0L SC V8 - AJ133): Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

    All vehicles

    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Refer to: Specifications information.
  3. Refer to: Auxiliary Battery Tray information.
  4. Refer to: Battery Tray information.
  5. Refer to: Air Cleaner Outlet Pipe LH information.
  6. Refer to: Air Cleaner Outlet Pipe RH information.
  7. Refer to: Plenum Chamber information.
  8. Refer to: Exhaust System information.
    9. NOTE: Remove and discard the gasket.
  9. TORQUE: 48 Nm
    GJ0013227
    10. NOTE: Remove and discard the gasket.
  10. TORQUE: 48 Nm
    GJ0013228
  11. See Figure
    GJ0013229
    12. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Be prepared to collect escaping fuel.
  12. See figure
    GJ0012818
    13. NOTE: RHD illustration shown, LHD is similar.
  13. See figure
    GJ0013230
  14. See figure
    GJ0013231
  15. See figure
    GJ0013232
    16. NOTE: Make sure the electrical connector is correctly secured.
  16. See figure

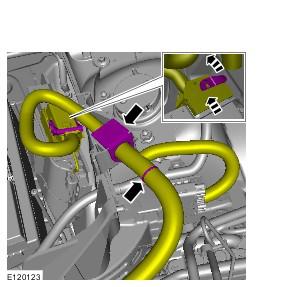

    GJ0013233

    17. Vehicles without supercharger

  17. See figure
    GJ0013234

    18. Vehicles with supercharger

  18. See figure
    GJ0013010

    19. All vehicles

  19. See figure
    GJ0013235
  20. See figure
    GJ0013236
  21. TORQUE: 10 Nm
    GJ0012914
  22. See figure
    GJ0013237
  23. See figure
    GJ0013238
  24. See figure
    GJ0012970
  25. See figure
    GJ0012887
  26. See figure
    GJ0013239
  27. TORQUE: 10 Nm
    GJ0012892
  28. See figure
    GJ0013240
  29. See figure
    GJ0013241
  30. TORQUE: 6 Nm
    GJ0012820
  31. See figure
    GJ0013242
  32. TORQUE: 10 Nm
    GJ0013243
    33. NOTE: RHD illustration shown, LHD is similar.
  33. TORQUE: 47 Nm
    GJ0013244
    34. NOTE: RHD illustration shown, LHD is similar.
  34. TORQUE: 47 Nm
    GJ0012129
  35. See figure
    GJ0013136
  36. See figure
    GJ0013245
  37. See figure
    GJ0013246
  38. See figure
    GJ0012522
  39. TORQUE: 48 Nm

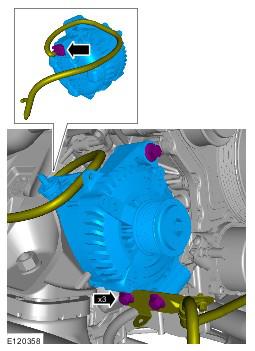

    GJ0012844
  40. See figure
    GJ0012849
  41. See figure
    GJ0013017
  42. See figure
    GJ0012080
  43. See figure
    GJ0013247
  44. TORQUE: 10 Nm
    GJ0012118
  45. TORQUE: 10 Nm
    GJ0012119
  46. TORQUE: 10 Nm
    GJ0013248
  47. TORQUE: 10 Nm
    GJ0013249
  48. See figure
    GJ0013250
    49. NOTE: RHD illustration shown, LHD is similar.
  49. See figure
    GJ0013251
