Front Door Latch: Removal

  1. Remove the window motor and regulator assembly. Refer to Front Door Window Regulator and Motor .
    2. CAUTION: Release the exterior door handle and screw cover clips from inside the door.
  2. Remove the front door exterior handle. See EXTERIOR FRONT DOOR HANDLE .
  3. Release the remote control cable.
    • Release the grommet.
  4. Release the door exterior handle mechanism.
    • Remove the adhesive tape from the access hole.
    • Remove the Torx screw.
    • Remove the locking pin.
  5. Remove the front door latch assembly.
    • Disconnect the electrical connector.
    • Remove the 3 Torx screws.

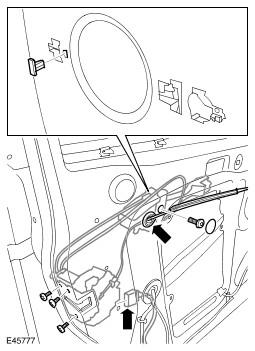

    GJ0019208
    6. NOTE: Do not disassemble further if the component is removed for access only.
  6. Remove the door latch remote control cable.
    • Release the cable from the abutment bracket.
    • Remove the cable from the lever.
    GJ0012054
  7. Release the exterior door handle mechanism cable from the door latch.
    • Release the cable from the abutment bracket.
    • Remove the cable from the lever.
    GJ0012052
  8. LH side: Release the door lock cylinder cable from the door latch.
    • Release the cable from the abutment bracket.
    • Remove the cable from the lever.
    GJ0019209
