Front Bumper Cover: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable. Refer to Specifications .
- Refer to Front Fender Moulding .
- Raise and support the vehicle.
- Remove both the front wheels and tires.
- See figure
- Torque: 1 Nm
- See figure
- Torque: 5 Nm
- Torque: 5 Nm
- Torque: 5 Nm
- See figure
- Torque: 1 Nm
- Torque: 1.5 Nm
- See figure
- Torque: 1 Nm
- See figure
- See figure
- See figure
WARNING:
Make sure to support the vehicle with axle stands.
NOTE:
The procedure must be carried out on both sides.
CAUTION:

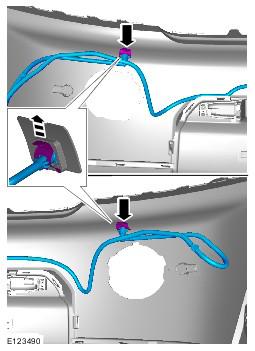

Take extra care not to damage the wiring harnesses.
NOTE:

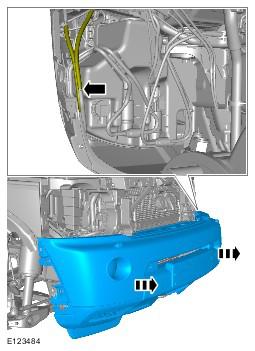

With assistance remove the component.
NOTE:
Do not disassemble further if the component is removed for access only.
CAUTION:
Make sure the locating tangs are aligned. Failure to follow this instruction may result in damage to the vehicle.
