Fender Splash Shield: Removal

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove the fender molding. Refer to Fender Moulding information.
  3. Remove the fender splash shield.
    • Remove the 2 screws.
    • Remove the 6 retainers.
    • Disconnect the electrical connector.

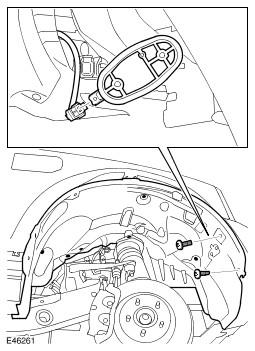

      GJ0019181
    4. NOTE: Do not disassemble further if the component is removed for access only.
  4. Remove the tire pressure antenna.
    • Remove the 2 retainers.
      GJ0014751
