Front Door Trim Veneer: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

  1. Disconnect the tweeter speaker electrical connector.
    CAUTION: Take extra care not to damage the component.
    CAUTION: Make sure that the clips are correctly located.
    GJ0013257
  2. See figure.
    GJ0014100
  3. See figure.
    GJ0014101
  4. See figure.
    CAUTION: Take extra care not to damage the component. Apply masking tape to the end of the screwdriver.
    CAUTION: When removing the chrome finisher from the trim panel, make sure the components are not damaged. If necessary protect the surrounding areas using masking tape.
    CAUTION: Make sure that the clips are correctly located.
    GJ0018979
  5. See figure.
    CAUTION: Take extra care not to damage the component. Apply masking tape to the end of the screwdriver.
    CAUTION: When removing the chrome finisher from the trim panel, make sure the components are not damaged. If necessary protect the surrounding areas using masking tape.
    CAUTION: Make sure that the clips are correctly located.
    GJ0018980
  6. See figure.
    GJ0018981
  7. See figure.
    GJ0018982
  8. See figure.
    GJ0018983
  9. See figure.
    GJ0018984
  10. See figure.
    GJ0014104
  11. See figure.
    CAUTION: Take extra care not to damage the wiring harnesses.

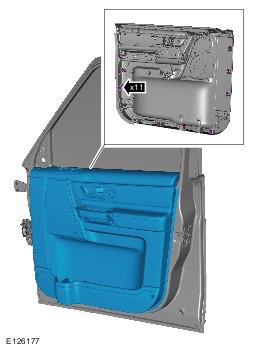

    GJ0018985
  12. See figure.
    GJ0014106
  13. See figure.
    GJ0014107
  14. See figure.
    GJ0014108
  15. See figure.
    CAUTION: Make sure that the release cable is removed from the door trim panel using the plastic fixing and not using the cable.
    GJ0014109
  16. See figure.
    GJ0014110
  17. Remove the front door trim panel.
  18. See figure.

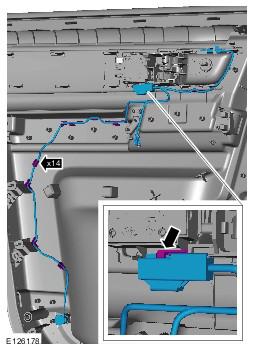

    GJ0018987
  19. Release the retaining tang and remove the veneer.

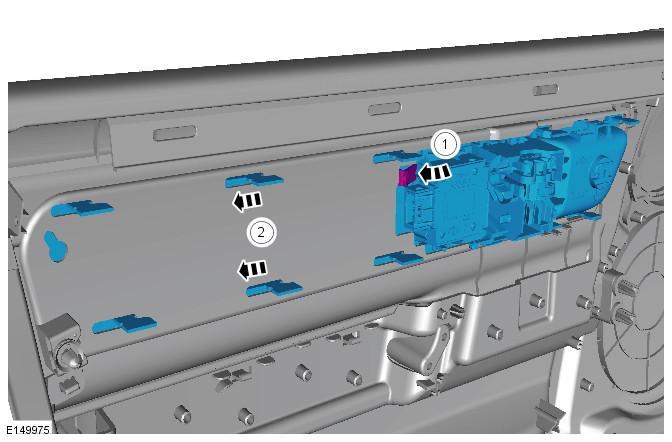

    G00527211

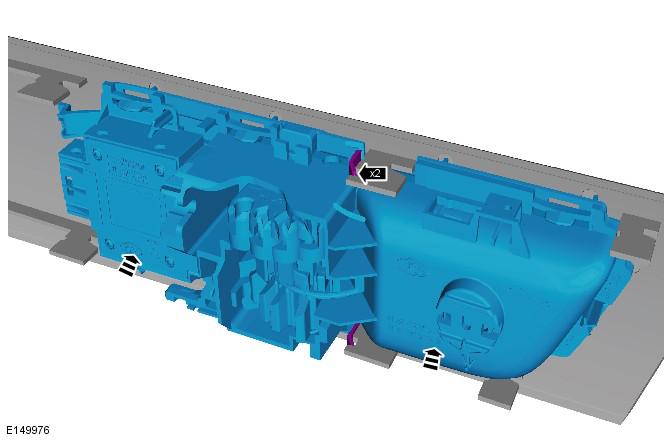

  20. Release the retaining tangs.
    G00527212
