Body - (Petrol): Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
NOTE: Some illustrations may show the engine removed for clarity.

    All vehicles

  1. Remove the battery cover. Refer to Battery information.
  2. See figure.
    GJ0013570
  3. See figure.
    GJ0013571
    4. NOTE: RHD illustration shown, LHD is similar.
  4. See figure.
    GJ0012452
  5. See figure.
    GJ0012455
  6. See figure.
    GJ0013572
  7. See figure.
    GJ0013958
  8. See figure.
    GJ0013573
  9. Refer to Air Cleaner LH information.
  10. Refer to Air Cleaner RH information.
  11. Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging information.
  12. Refer to Rear Bumper Cover information.

    13. Vehicles with active damping

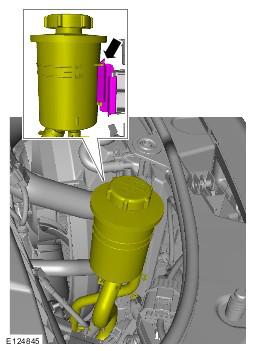

  13. See figure.
    GJ0013574

    14. All vehicles

    CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    • Discard the O-ring seal.
    GJ0012968

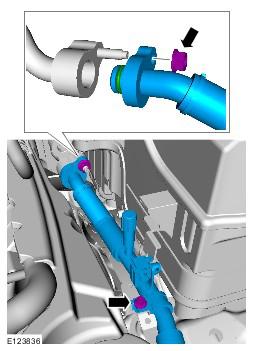

    15. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    • Discard the O-ring seal.
    GJ0012969
    16. WARNING: Be prepared to collect escaping fluid.
  16. See figure.
    GJ0013959
  17. See figure.
    GJ0013960
  18. See figure.
    GJ0013961
  19. Refer to Auxiliary Battery Tray information.
    GJ0012466
  20. See figure.
    GJ0013576
  21. See figure.
    GJ0013577
  22. See figure.
    GJ0013578
  23. Refer to Coolant Expansion Tank information.
  24. See figure.
    GJ0013579
  25. See figure.
    GJ0012115
  26. See figure.
    GJ0012107
  27. See figure.
    GJ0013580
  28. See figure.
    GJ0013585
  29. See figure.
    GJ0013586
  30. See figure.
    GJ0013587
  31. See figure.
    GJ0013588
  32. See figure.
    GJ0013589
  33. See figure.
    GJ0013590
  34. See figure.
    GJ0013591
  35. See figure.
    GJ0013592
  36. See figure.
    GJ0013593
    37. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    • Position an absorbent cloth to collect fluid spillage.
    • Disconnect the line union.
    • Remove the clip.
    GJ0013594
    38. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    • Position an absorbent cloth to collect fluid spillage.
    • Disconnect the line union.
    • Remove the clip.
    GJ0013595
  39. See figure.
    GJ0013596
  40. Refer to Fuel Filler Door Assembly information.
    GJ0013597
  41. Remove the fuel filler cap.
  42. See figure.
    GJ0013598
    43. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    • Position an absorbent cloth to collect fluid spillage.
    • Disconnect the line union.
    • Remove the clip.
    GJ0013599
    44. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    • Position an absorbent cloth to collect fluid spillage.
    • Disconnect the line union.
    • Remove the clip.
    GJ0013600
  45. See figure.
    GJ0013601
  46. See figure.
    GJ0013602
  47. See figure.
    GJ0013605
    48. CAUTION: Note the fitted position of the seal.
  48. See figure.
    GJ0013603
    • Remove and discard the bolt.
    GJ0013604
  50. See figure.
    GJ0013606
  51. Lower the vehicle.
  52. See figure.
    GJ0013177

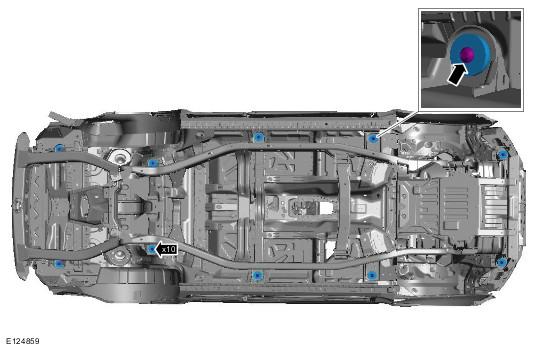

  53. Remove and discard the 10 body mount bolts.
    • Remove the 10 spacing washers.
    GJ0013611
    54. CAUTION: To prevent the body becoming unstable when raised from the integrated body frame, install the vehicle tie down straps.
    NOTE: Note the fitted position of the body mounts.

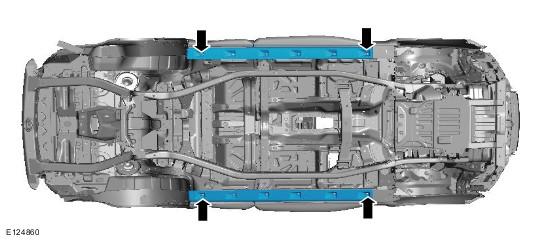

  54. Using an assistant raise and support the body.
    • Remove the body mounts.
    GJ0013612
  55. See figure.
    GJ0013613
