Front Seat: Removal

WARNING: It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
WARNING: Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
  1. Make the SRS system safe. Refer to Standard Workshop Practices article.
    2. NOTE: Torx bolts may be re-used.

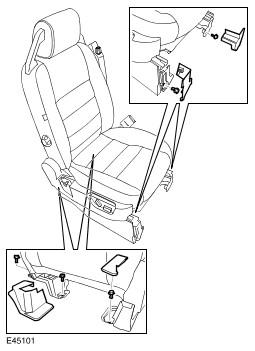

  2. Release the front seat.
    • Remove the bolt covers.
    • Remove and the 5 Torx bolts.
    GJ0013750
  3. Release the safety belt lower anchor from the seat.
    • Remove the bolt cover.
    • Passenger side, disconnect the electrical connector.
    • Remove and discard the Torx bolt.
    GJ0014612
  4. With assistance, remove the front seat.
    • Protect the rocker panel.
    • Remove the bolt.
    • Disconnect the 2 electrical connectors.
    • Release the 2 wiring harness clips.
    GJ0015246
