Roof Opening Panel: Notes

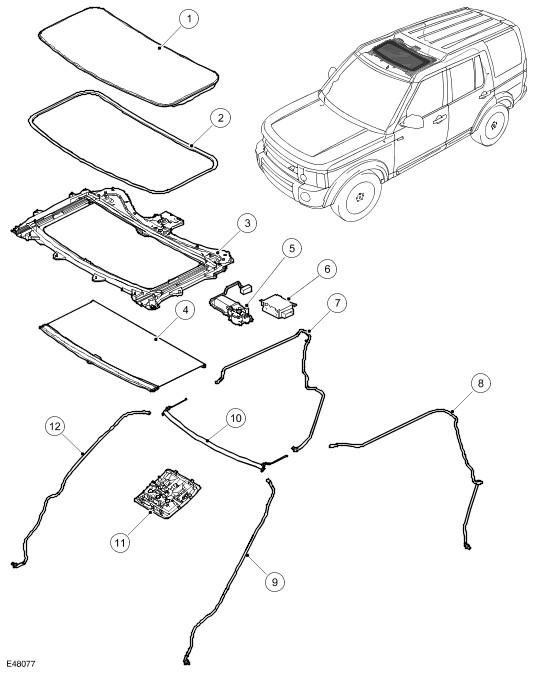

Roof Opening Panel Components
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Glass panel assembly |
| 2 |
Glass panel seal |
| 3 |
Frame assembly |
| 4 |
Sunblind |
| 5 |
Motor |
| 6 |
Control module |
| 7 |
RH rear drain tube |
| 8 |
LH rear drain tube |
| 9 |
LH front drain tube |
| 10 |
Deflector |
| 11 |
Access panel |
| 12 |
RH front drain tube |
