Pinpoint Test G: Roof Opening Panel Blind - Noise

G1: GUIDES - INSPECTION

1. Carry out visual inspection of the guides

Are the guides free from debris and obstruction?

Yes:

GO to G2  .

No:

Remove any debris or obstruction. Check for correct operation. (1)  If correct no further action required. (2)  If customer concern is still evident GO to G2  .

G2: SLIDESHOES

1. Remove the slide shoes from the guide
2. Carry out visual inspection of the slide shoes

Are the slide shoes broken / damaged or is the felt on the slide shoes missing or damaged?

Yes:

If the felt on the slide shoe is adrift then it may be possible to secure the felt using a small amount of glue. Replace the rollo blind as required. Check for correct operation. (1)  If correct no further action required. (2)  If customer concern is still evident GO to G3  .

No:

GO to G3  .

G3: MOUNTING PINS

1. Lower the headliner to gain access to see the ends of the blind assembly mounted into the roof REFER to: HEADLINER . (remove grab handle, remove headliner clips to roof opening panel)

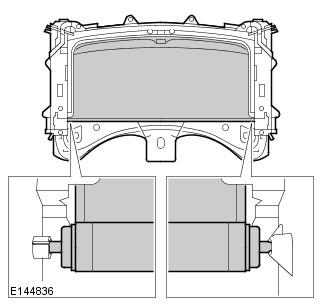

2. Carry out visual inspection of the mounting pins of the rollo blind

e the rollo pins correctly mounted?

Yes:

If customer concern is still evident contact dealer technical support

No:

Remove the rollo blind. Carry out blind rewind procedure. REFER to: Roof Opening Panel Blind Rewind Procedure . Re-install the rollo blind. Check for correct operation. (1)  If correct no further action required. (2)  If customer concern is still evident contact dealer technical support
