Roof Opening Panel Blind Rewind Procedure: Inspection

  1. Refer to: HEADLINER .
  2. Close the roof opening panel blind (but do not latch the handle to the frame).
    GJ0021719
  3. Using a suitable tool, release the roof opening panel blind locking tang on the right.
    G00523436
    • Release the roof opening panel blind from the mounting bracket and remove the roof opening panel blind from the vehicle.
    • 1. Push the roof opening panel blind to the right.
    • 2. Rotate the roof opening panel blind counter clockwise.

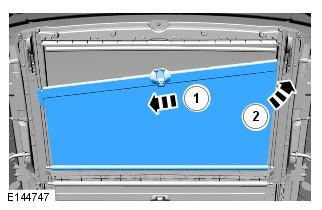

    G00523440
  5. Remove the roof opening panel blind.
    • Rewind the roof opening panel.
    • 1. Push the spring axle into the roof opening panel blind.
    • 2. Using a suitable tool, hold and rotate the spring axle 13 turns (360°).
    • 3. Release the spring axle 17 mm from the roof opening panel blind once the 13 rotations have been completed.
    G00523444
    • Install the roof opening panel blind sliders to the runners.
    • 1. Push the roof opening panel blind right slider in to the runner
    • 2. Install the left slider clockwise to the runner.
    GJ0021725
  8. Close the roof opening panel blind.
    GJ0021719
    9. NOTE: Make sure that the spring axle is correctly located into the roof opening panel.
    • Open the roof opening panel blind and check for correct operation.
  10. Refer to: HEADLINER .
