Lifter Arms: Installation

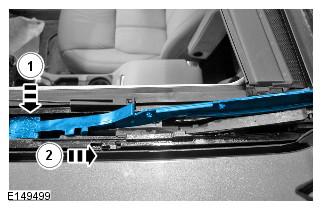

    1. Install the lifter arm.
    2. Slide the lifter arm rearwards.
    G00523460

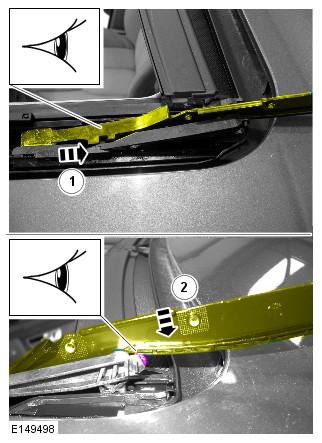

    1. Push the lifter arm rearwards and locate in the tangs.
    2. Push the lifter arm downwards and locate in the guides.
    G00529779

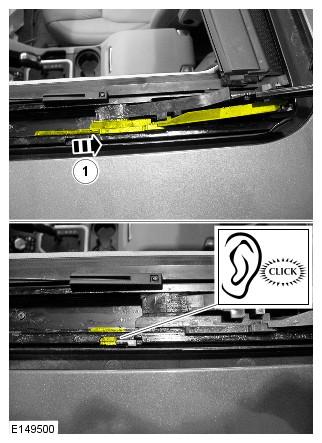

    • Slide the driving wedge rearward until the locking tab is fully located.
    G00523468
  4. Repeat the procedure to the other side.
  5. Refer to: Roof Opening Panel Glass .
