Brake Pads - (Vehicles With: Standard Brakes): Removal

WARNING: Brake pads must be renewed in axle sets only, otherwise braking efficiency may be impaired.
WARNING: If the brake pad wear warning light has been activated, the pad wear sensor must be replaced.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Remove the wheels and tires.
    3. CAUTION: The brake pad wear indicator sensor is easily damaged. Do not use a lever to remove the sensor. Use fingers only.
  3. LH side front: Disconnect the brake pad wear indicator sensor wiring harness.
    GJ0013151
    4. NOTE: This step is only required if a new wear indicator harness is installed.
  4. Remove the front LH fender splash shield. Refer to Fender Splash Shield information.
    5. NOTE: This step is only required if a new wear indicator harness is installed.
  5. LH side front: Release and disconnect the brake pad wear indicator wiring harness.
    GJ0013152
    6. NOTE: Use an additional wrench to prevent the component from rotating.
  6. Remove the brake caliper lower bolt.
    GJ0013153
    7. NOTE: Note the orientation of the brake pads.
  7. Remove the brake pads.
    • Rotate the brake caliper upwards.
    • Remove the 2 clips.

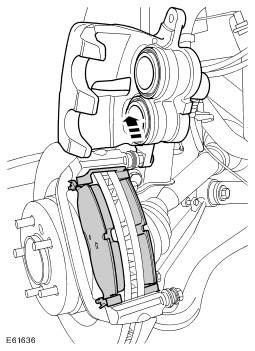

      GJ0013154
  8. Repeat the above 2 steps for the other side.
