Hydraulic Brake Actuation: Notes
NOTE:
RHD shown, LHD similar
 Courtesy of JAGUAR CARS, INC.
|

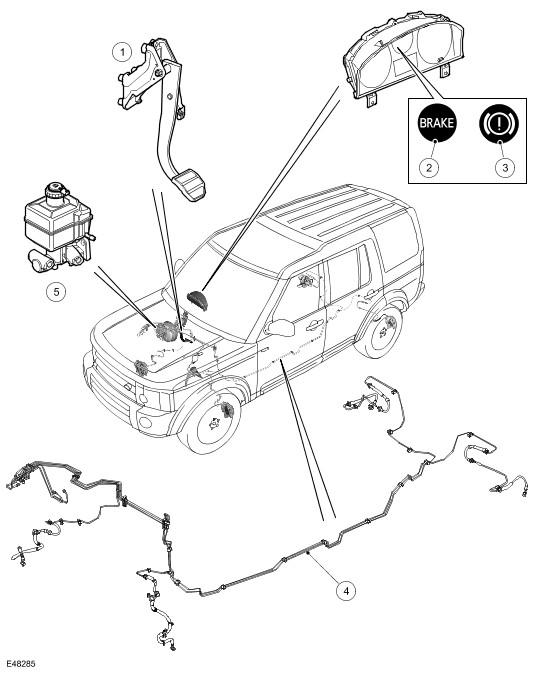

| Item Number |
Description |
| 1 |
Brake pedal (automatic shown) |
| 2 |
Brake warning indicator (NAS) |
| 3 |
Brake warning indicator (all except NAS) |
| 4 |
Brake pipes and hoses |
| 5 |
Brake master cylinder and reservoir |
