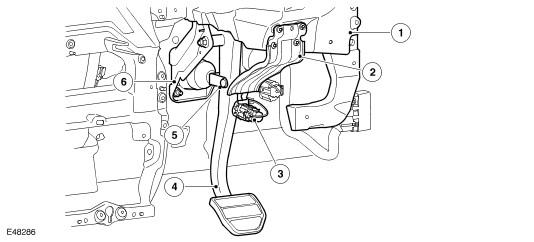

Brake Pedal
| Item Number | Description |
|---|---|
| 1 | In-vehicle cross beam |
| 2 | Brake pedal buffer |
| 3 | Stoplamp switch |
| 4 | Brake pedal |
| 5 | Clevis pin and clip |
| 6 | Brake pedal bracket |
NOTE:
Automatic gearbox model shown, manual gearbox model similar
The brake pedal is mounted in a bracket attached to the rear side of the engine bulkhead. On Left Hand Drive (LHD) manual gearbox models, the brake pedal shares a bracket and pivot bolt with the clutch pedal. On Right Hand Drive (RHD) manual gearbox models, the brake pedal has a separate bracket. A clevis pin and clip connect the brake pedal to the push rod of the brake booster. A brake pedal buffer is installed on the in-vehicle cross beam to restrain rearward movement of the brake pedal in an accident.
The stoplamp switch is mounted in the brake pedal bracket and operated by the brake pedal. Refer to Anti-Lock Control - Traction Control information.
