Brake Fluid Reservoir: Removal

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

    All vehicles

    WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Remove the cover.
    GJ0014139
  3. Position an absorbent cloth to collect fluid spillage.
  4. Disconnect the low brake fluid warning indicator switch electrical connector.

    5. Vehicles with manual transmission

    CAUTION: Always plug any open connections to prevent contamination.
  5. Disconnect the clutch master cylinder supply line.

    6. All vehicles

    CAUTION: Always plug any open connections to prevent contamination.

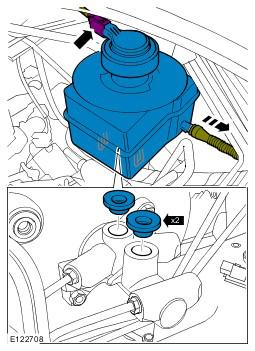

  6. Remove the brake fluid reservoir.
    • Release the 2 clips.
    • Remove and discard 2 brake fluid reservoir seals.
    GJ0018945
