Rear Disc Brake: Notes

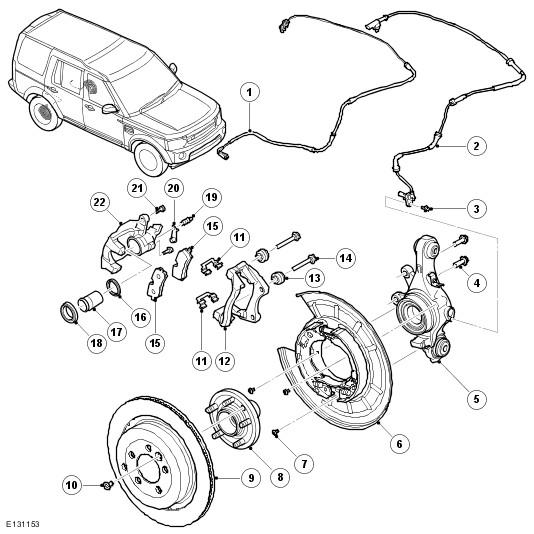

Component Locations
| Item Number | Description |
|---|---|
| 1 | Brake pad wear sensor lead |
| 2 | Wheel speed sensor |
| 3 | Wheel speed sensor bolt |
| 4 | Caliper bolt (x 2) |
| 5 | Rear knuckle |
| 6 | Backplate assembly and dust shield |
| 7 | Dust shield screw (x 3) |
| 8 | Drive flange assembly |
| 9 | Brake disc |
| 10 | Brake disc retaining bolt |
| 11 | Brake pad retainers |
| 12 | Caliper carrier |
| 13 | Guide pin dust cover (x 2) |
| 14 | Guide pin (x 2) |
| 15 | Brake pad |
| 16 | Piston seal |
| 17 | Piston |
| 18 | Piston dust cover |
| 19 | Bleed screw |
| 20 | Bleed screw dust cap |
| 21 | Guide pin bolt (x 2) |
| 22 | Caliper body |
