Brake Disc: Removal
WARNING:
If installing a new brake disc, install new brake pads.
CAUTION:
Brake discs must be renewed in pairs.
NOTE:
If the parking brake shoes or the brake discs have been removed for access to other components then DO NOT carry out the bedding in procedure.
NOTE:
LH illustration shown, RH is similar.
NOTE:
The brake pad wear warning indicator sensor must be replaced each time the brake pads are serviced.
- Using the Land Rover approved diagnostic system, drive the parking brake to the 'mounting position'.
- Raise and support the vehicle.
- Remove the rear wheel and tire.
- Remove the brake caliper and anchor plate.
- Release the parking brake shoe adjustment.
- Remove the parking brake shoe adjuster access plugs.
- Rotate the parking brake shoe adjuster.
- Remove the rear brake disc.
- Remove the Allen screw.
WARNING:
Make sure to support the vehicle with axle stands.
NOTE:

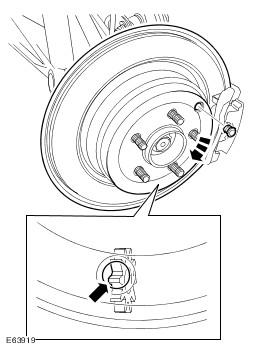

Rotate the rear brake disc to locate the parking brake shoe adjuster.
