Electronic Rear Differential Control Module

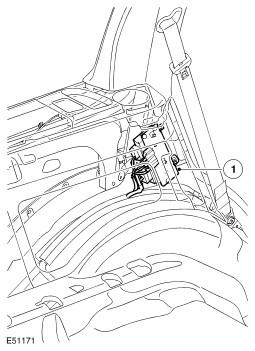

The electronic rear differential control module controls the multi-plate clutch actuation. The control module is mounted on a bracket located on the LH C-pillar, behind the trim.

GJ0019435Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Electronic rear differential control module

The control module is connected on the Controller Area Network (CAN) bus and controls the differential operation using CAN messages from other control modules on the network.

The control module uses three connectors for all inputs and outputs. It receives a permanent power supply via a 40A fusible link located in the Battery Junction Box (BJB), and an ignition supply via fuse 24 located in the Central Junction Box (CJB).

The control module memorizes the position of the electronic rear differential motor when the ignition is switched off.

The control module controls the closed loop position sensing system within the motor and regulates the power supply to the motor.

If the control module is replaced, T4 must be connected to the vehicle and the electronic rear differential control module self-calibration procedure must be performed. This procedure must also be performed if the motor or differential assembly is replaced.

If a fault occurs with the electronic rear differential, the control module or one of the required input signals, i.e. road speed signal, the control module records an error code and a warning lamp, in the instrument cluster, illuminates permanently.

Electronic Rear Differential Control Module Pin Out Details

Connector C2162

Pin No.  Description  Input/output
1 Not used -
2 CAN bus low Input/output
3 CAN bus high Input/output
4 Not used -
5 CAN bus high Input/output
6 CAN bus low Input/output

Connector C2163

Pin No.  Description  Input/output
1 Not used -
2 Not used -
3 Ground -
4 Ignition feed Input
5 Not used -
6 Ground -
7 Battery feed Input
8 Battery feed Input

Connector C2164

Pin No.  Description  Input/output
1 +ve for actuator Hall sensor Input
2 Not used -
3 Actuator motor Output
4 Hall sensor - Signal A Input
5 Not used -
6 Not used -
7 Hall sensor - Signal B Input
8 Differential oil temperature sensor Input
9 Not used -
10 Ground - Hall sensor -
11 Differential oil temperature sensor Output
12 Actuator motor Input
13 Motor temperature sensor Output
14 Not used -
15 Not used -
16 Motor temperature sensor Input
17 Motor brake solenoid Output
18 Motor brake solenoid Input
