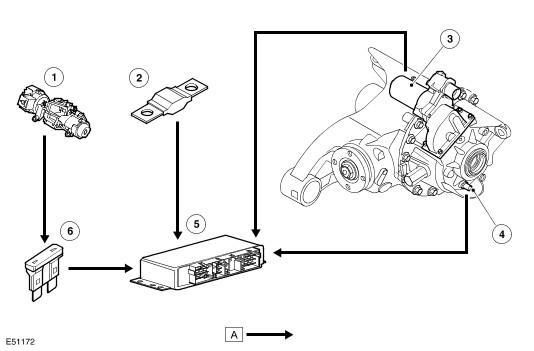

Electronic Rear Differential Control Diagram

NOTE: A = Hardwired
GJ0014192Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Ignition switch
2 Fusible link (battery)
3 Actuator motor
4 Oil temperature sensor
5 Electronic rear differential control module
6 Fuse (ignition)
