Axle Housing Bushing: Installation

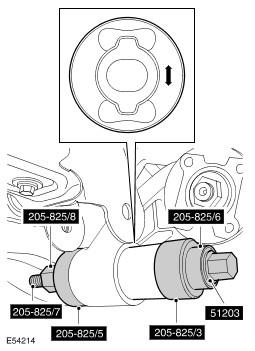

- Using the special tools, install the axle housing bushing.
- Using a suitable jack, raise the front of the differential.
- Install the axle front retaining bolt.
- Tighten to 275 Nm (203 lb.ft).
- Attach the driveshaft to the rear axle drive flange.
- Clean the component mating faces.
- Attach the driveshaft to the rear axle drive flange.
- Tighten the new Torx bolts to 150 Nm (110 lb.ft).
- Install the fuel tank heat shield.
- Tighten the bolts and nuts to 10 Nm (7 lb.ft).
- Install the muffler assembly. MufflerRefer to
CAUTION:
Make sure the weight of the axle is always supported.
