System Operation And Component Description: Notes
NOTE:
A
= Hardwired; D
= High speed controller area network (CAN) bus; N
= Medium speed controller area network (CAN) bus; O
= local interconnect network (LIN) bus

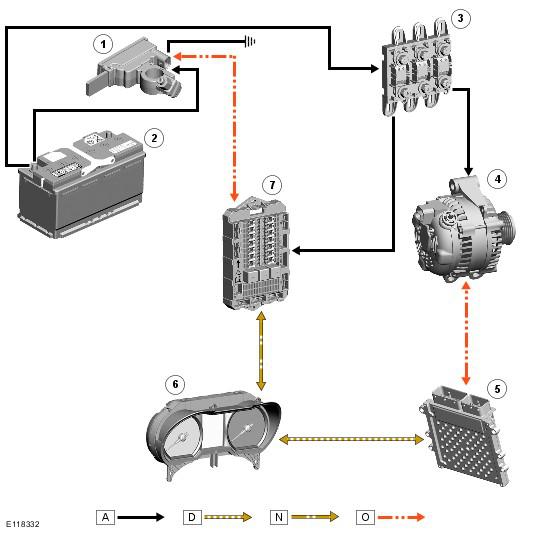

| Item Number | Description |
|---|---|
| 1 | Battery monitoring system module |
| 2 | Battery |
| 3 | battery junction box (BJB) |
| 4 | Generator and regulator |
| 5 | engine control module (ECM) |
| 6 | Instrument cluster |
| 7 | rear junction box (RJB) |
