Instrument Cluster Lens: Installation

    CAUTION: Take care not to damage the circuit board.
  1. Gently install the clips.
    GJ0014466
  2. Gently install the clips and remove the instrument cluster from the electro discharge bag.
    GJ0014465

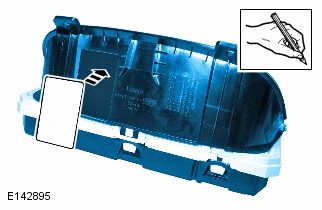

  3. Copy the serial number, build date and assembly number from the old label onto the new label.
    GJ0014468
  4. See Instrument Cluster Lens .
