Instrument Panel Driver Side Reinforcement: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Fully extend the steering column for access.
  2. Refer to Steering Wheel information.
  3. See Instrument Panel Center Reinforcement .
  4. Refer to Instrument Cluster information.

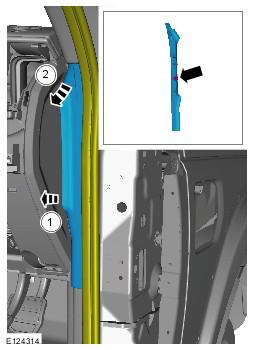

  5. See figure.
    GJ0014030
  6. See figure.
    GJ0014031
  7. See figure.
    GJ0014032
    8. NOTE: Left-hand drive shown, right-hand drive similar.
  8. See figure.
    GJ0014033
