Instrument Panel Passenger Side Reinforcement: Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Remove the PAD switch. Refer to Passenger Air Bag Deactivation (PAD) Switch information.
  2. Remove the instrument panel center reinforcement. See Instrument Panel Center Reinforcement .
  3. Remove the glove compartment. See Glove Compartment .
  4. Detach the door weatherstrip and remove the side trim panel.
    1. Release the trim panel retaining clip.
    2. Remove the trim panel.
    GJ0014034
  5. Remove the passenger side footwell duct.
    • Remove the clip.
    GJ0014035
  6. Remove the stowage compartment tray.
    • Release the 4 clips.
    GJ0014036
  7. Remove the passenger side support bracket lower retaining screws.
    GJ0014037
  8. Remove the instrument panel passenger side reinforcement.
    • Remove the 11 Torx screws.
    • Disconnect the electrical connector.
    GJ0014038
    9. NOTE: Do not disassemble further if the component is removed for access only.
  9. Remove the glove compartment lamp.
    GJ0014039
  10. Remove the glove compartment damper.
    • Remove the Torx screw.
    GJ0014040

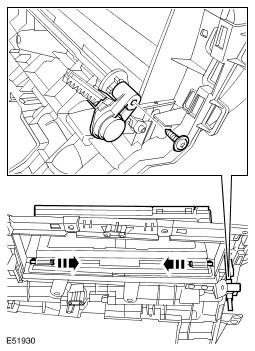

    11. NOTE: Note the position of the hinge pin and spring prior to removal.
  11. Remove the stowage compartment lid.
    • Remove the 2 hinge pins.
    • Release the 2 hinge springs.
    • Remove the Torx screw and remove the damper.
    GJ0014041
  12. Remove the glove and stowage compartment strikers.
    • Remove the 4 Torx screws.
    GJ0014042
