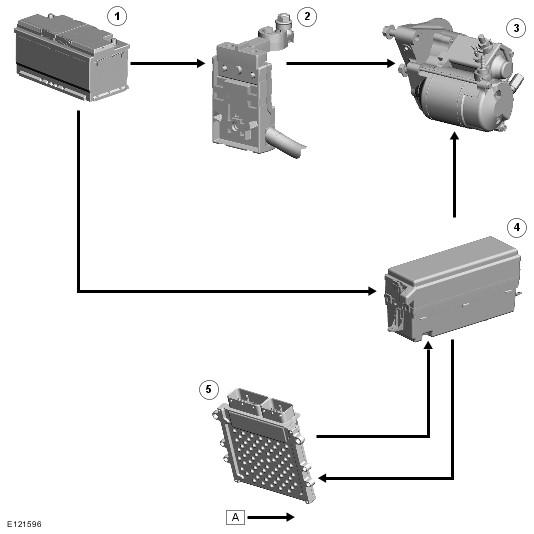

Control Diagram

NOTE: A = Hardwired.

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Battery
2	Terminal post megafuse (500 A)
3	Starter motor
4	EJB (engine junction box) (starter relay)
5	ECM (engine control module)
