Full Load Breather

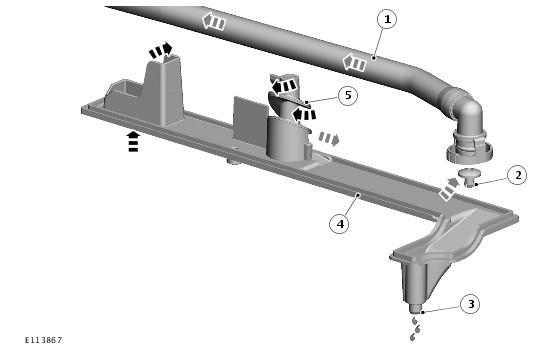

| Item Number | Description |
|---|---|
| 1 | Flexible hose |
| 2 | Two-way valve |
| 3 | Oil drain |
| 4 | Baffle plate |
| 5 | Oil separator |
The full load breather consists of an oil separator, a two-way valve and a flexible hose. The oil separator and the two-way valve are installed in the top of the left-hand (LH) cylinder head cover. The flexible hose connects the left-hand (LH) cylinder head cover to the left-hand (LH) air duct of the intake air distribution and filtering system.
The oil separator is installed in a channel in the top of the cylinder head cover. A baffle plate, which incorporates a gas inlet and an oil drain, is installed over the channel. The two-way valve is installed in the gas outlet from the channel. The two-way valve prevents reverse flow into the cylinder head cover when there is minimal depression in the air duct.
