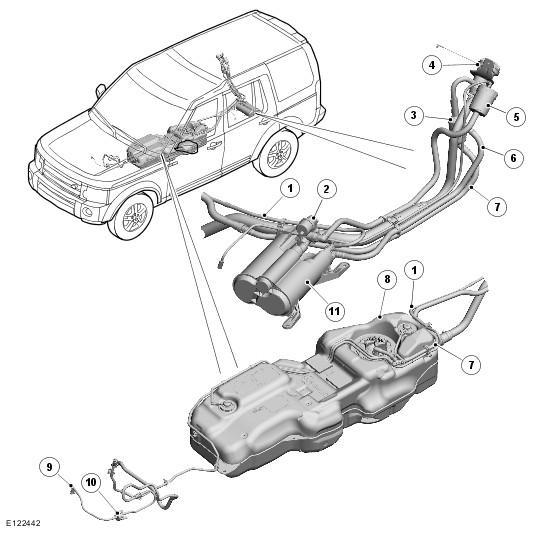

Component Location - NAS
| Item Number | Description |
|---|---|
| 1 | Charcoal canister to purge valve pipe |
| 2 | DMTL (diagnostic module tank leakage) pump |
| 3 | Vapor separator |
| 4 | Fuel filler pipe and cap |
| 5 | Atmospheric vent filter |
| 6 | Vapor separator to charcoal canister pipe |
| 7 | Fuel tank to vapor separator pipe |
| 8 | Fuel tank |
| 9 | Purge line connector to supercharger |
| 10 | Purge valve |
| 11 | Charcoal canister |
