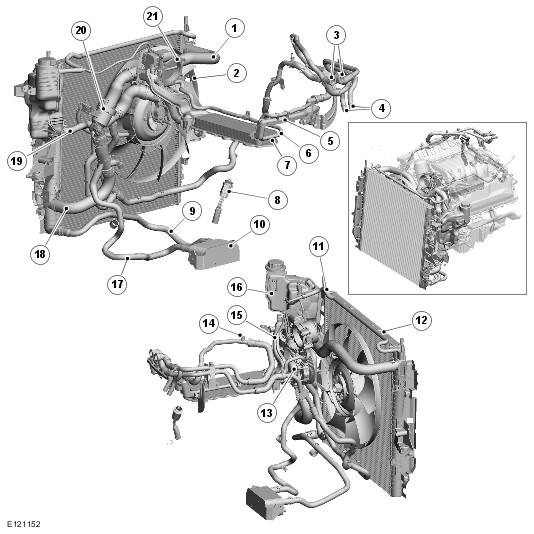

| 1 |
Radiator upper hose |
| 2 |
Cooling fan |
| 3 |
Heater system supply and return hoses |
| 4 |
FFBH (fuel fired booster heater) supply and return connections (where fitted) |
| 5 |
Heater manifold |
| 6 |
Throttle body heater hose |
| 7 |
Engine oil cooler |
| 8 |
Engine block heater (230 V version shown) or drain plug |
| 9 |
Transmission fluid cooler supply hose |
| 10 |
Transmission fluid cooler |
| 11 |
Bleed hoses |
| 12 |
Radiator |
| 13 |
Coolant pump |
| 14 |
Bleed screw |
| 15 |
Outlet tube |
| 16 |
Coolant expansion tank |
| 17 |
Transmission fluid cooler return hose |
| 18 |
Radiator lower hose |
| 19 |
Coolant supply/expansion hose |
| 20 |
Thermostat |
| 21 |
Throttle |
