Engine Cooling: Radiator

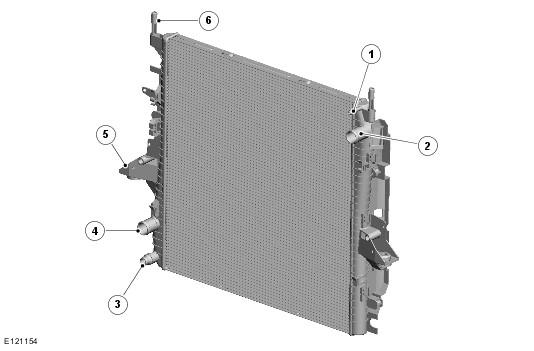

| Item Number | Description |
|---|---|
| 1 | Bleed hose connection |
| 2 | Upper hose connection |
| 3 | Transmission fluid cooler supply hose connection |
| 4 | Lower hose connection |
| 5 | Radiator lower support (2 off) |
| 6 | Radiator upper support (2 off) |
The radiator is an aluminum cross flow type with plastic end tanks. Upper and lower supports locate the radiator in the radiator support assembly and the front crush siderails respectively.
Connections are incorporated into the end tanks for the upper and lower hoses, the supply hose of the transmission fluid cooler and a bleed hose.
