Air Distribution And Filtering: Notes

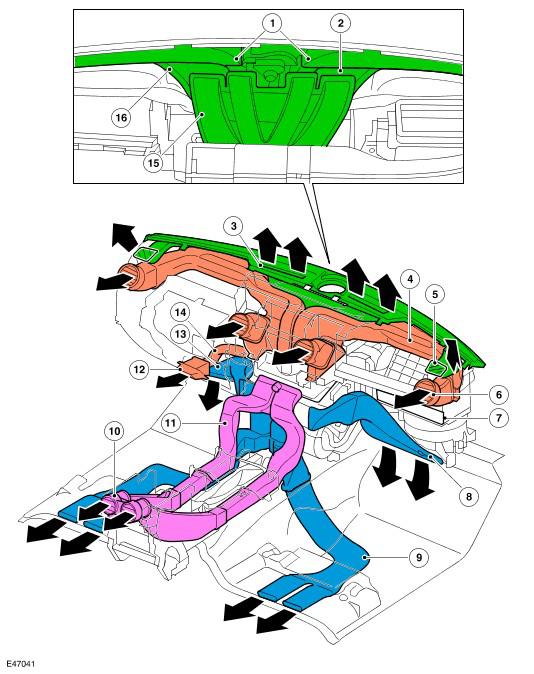

COMPONENT LOCATIONS
| Item Number | Description |
|---|---|
| 1 | Side window ducts |
| 2 | Windshield duct |
| 3 | Windshield vent |
| 4 | Instrument panel register duct |
| 5 | Side window vent |
| 6 | Instrument panel register |
| 7 | Cabin air filter |
| 8 | Front passenger footwell duct |
| 9 | Second row footwell duct |
| 10 | Second row register |
| 11 | Second row register duct |
| 12 | Driver lap register |
| 13 | Driver footwell duct |
| 14 | Driver lap register duct |
| 15 | Heater outlet manifold |
| 16 | Windshield duct |
NOTE:
LHD installation shown, RHD similar
