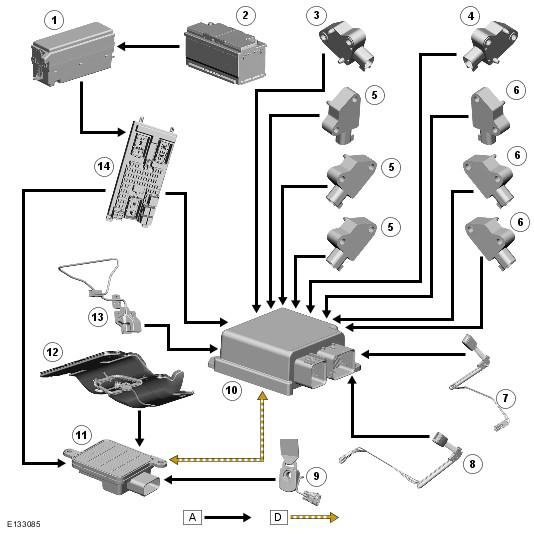

Control Diagram - Sheet 1 Of 2 (NAS)
NOTE:
A = Hardwired connections; D = High speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Fusible link 11E, BJB |
| 2 | Battery |
| 3 | Left front impact sensor |
| 4 | Right front impact sensor |
| 5 | Left side impact sensor |
| 6 | Right side impact sensor |
| 7 | Left safety belt buckle switch |
| 8 | Right safety belt buckle switch |
| 9 | Instrument cluster |
| 10 | Safety belt tension sensor |
| 11 | Occupant classification module |
| 12 | Pressure pad and sensor |
| 13 | Seat position sensor |
| 14 | RCM |
| 15 | Fuse 9P, CJB |
| 16 | Ignition switch |
| 17 | Fuse 68P, CJB |
| 18 | Passenger air bag deactivation indicator |
