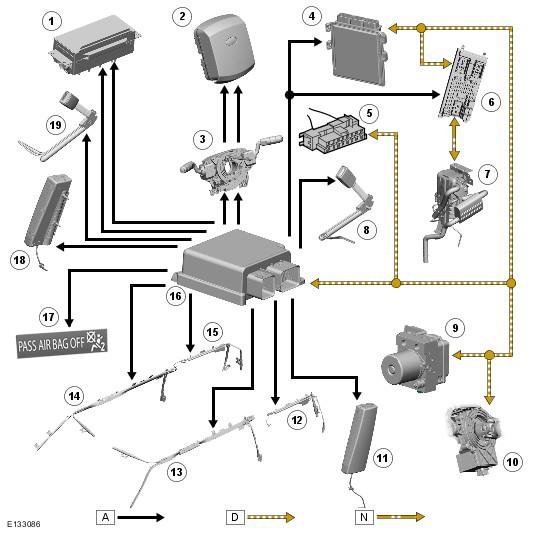

Control Diagram - Sheet 2 Of 2 (All Markets)
NOTE:
A = Hardwired connections; D = High speed controller area network (CAN) bus; N = Medium speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Passenger air bag |
| 2 | Driver air bag |
| 3 | Clockspring |
| 4 | ECM |
| 5 | Diagnostic socket |
| 6 | Left pretensioner |
| 7 | Left side air bag |
| 8 | Left third row side air curtain |
| 9 | Left first and second row side air curtain |
| 10 | Right third row side air curtain |
| 11 | Right first and second row side air curtain |
| 12 | RCM |
| 13 | Right side air bag |
