Belt Minder Function (Where Fitted)
The belt minder function provides warnings to the driver if the appropriate front safety belts are not fastened when driving. The belt minder function is controlled by the instrument cluster using medium speed CAN bus messages, from the restraints control module, to monitor the status of the front safety belts.
When the ignition switch is turned to position II, the instrument cluster illuminates the safety belt warning indicator until one of the front safety belts is fastened or the belt minder function is triggered. The belt minder function is triggered when the ignition switch is in position II and the following conditions coexist:
- The belt minder function is enabled.
- Vehicle speed is 8 km/h (5 mph) or more.
- The vehicle is not in reverse.
- The driver safety belt or, if the front passenger seat is occupied, the front passenger safety belt, is unfastened.
When the belt minder is triggered, the instrument cluster generates the following warnings for 10 seconds.
- Flashes the safety belt warning indicator at 2 Hz.
- Sounds a repeating chime in sequence with the flashing safety belt warning indicator.
After 10 seconds, the repeating chime is discontinued and the safety belt warning indicator changes from flashing to continuously illuminated. While the trigger conditions still coexist, the warnings are repeated every 30 seconds until one of the following occurs:
- 5 minutes has elapsed from when the warnings were first triggered.
- The safety belt of each occupied front seat is fastened.
- The ignition switch is turned to position 0.
- The vehicle speed decreases to 5 km/h (3 mph).
The belt minder function can be enabled and disabled using the driver safety belt switch. The instrument cluster changes the state of the belt minder function if, within 60 seconds of first turning the ignition switch to position II, the driver safety belt is fastened and unfastened nine times. Successful completion of the change is indicated by a single chime and the safety belt warning indicator flashing five times, at 2 Hz. The belt minder function can also be enabled and disabled using T4.

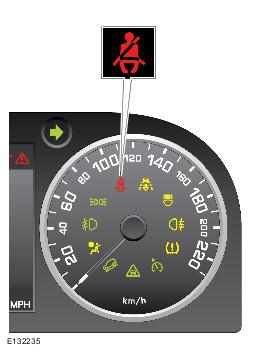

Safety Belt Warning Indicator
