Front Safety Belt Buckle: Removal
WARNING:
It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
WARNING:
Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
- Disconnect the battery ground cable. Refer to Specifications article.
- Make the SRS system safe. Refer to Standard Workshop Practices article.
- Remove the front seat. Refer to Front Seat article.

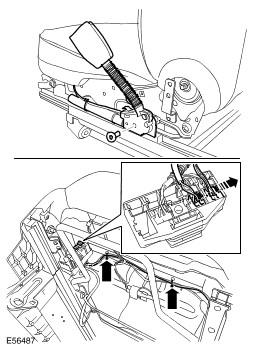

- Remove the seat backrest hinge cover.
- Remove the 2 screws.
- Remove the front safety belt buckle.
- Remove the Torx bolt.
- Disconnect the 2 electrical connectors.
- Release the wiring harness.
