Torque Converter: Notes

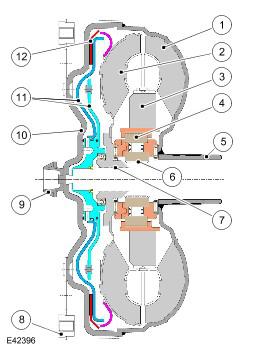

| Item Number | Description |
|---|---|
| 1 | Impeller |
| 2 | Turbine |
| 3 | Stator |
| 4 | Freewheel clutch |
| 5 | Torque converter hub |
| 6 | Stator shaft |
| 7 | Turbine shaft |
| 8 | Drive plate |
| 9 | Journal - Drive plate/crankshaft location |
| 10 | Torque converter cover |
| 11 | Lock-up clutch piston |
| 12 | Lock-up clutch plate |
The torque converter is the coupling element between the engine and the transmission and is located in the bell housing, on the engine side of the transmission. The driven power from the engine crankshaft is transmitted hydraulically and mechanically through the torque converter to the transmission. The torque converter is connected to the engine by a drive plate attached to the rear of the crankshaft.
The torque converter comprises an impeller, a stator and a turbine. The torque converter is a sealed unit with all components located between the converter housing cover and the impeller. The two components are welded together to form a sealed, fluid filled housing. With the impeller welded to the converter housing cover, the impeller is therefore driven at engine crankshaft speed.
The converter housing cover has four threaded bosses, which provide for attachment of the engine drive plate. The threaded bosses also provide for location of special tools which are required to remove the torque converter from the bell housing.
