MECHATRONIC Valve Block: Notes
The Mechatronic valve block is located in the bottom of the transmission and is covered by the fluid pan. The valve block houses the transmission control module (TCM), electrical actuators, speed sensors and control valves which provide all electro-hydraulic control for all transmission functions. The Mechatronic valve block comprises the following components:
- transmission control module (TCM)
- Six pressure regulator solenoids
- One shift control solenoid
- One damper
- Twenty one hydraulic spool valves
- Manually operated selector valve
- Temperature sensor
- Turbine speed sensor
- Output shaft speed sensor.

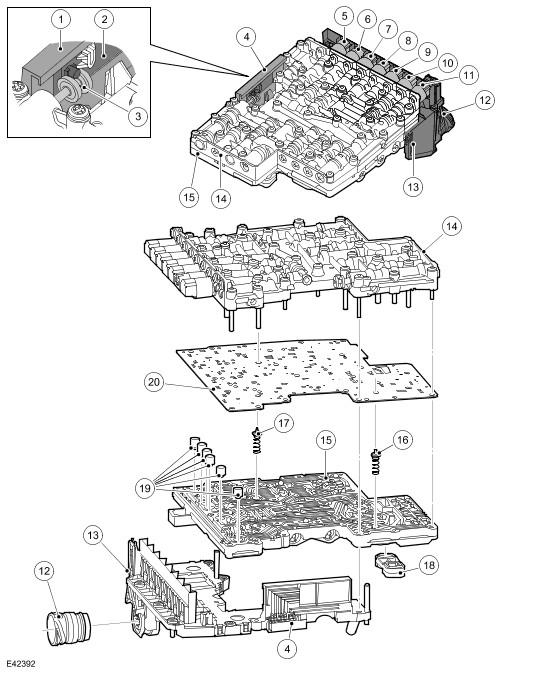

| Item Number | Description |
|---|---|
| 1 | Position switch |
| 2 | Sliding block |
| 3 | Selector spool valve |
| 4 | Position switch assembly |
| 5 | EPRS 6 |
| 6 | Solenoid Valve 1 |
| 7 | EPRS 4 |
| 8 | EPRS 5 |
| 9 | EPRS 3 |
| 10 | EPRS 2 |
| 11 | EPRS 1 |
| 12 | Electrical connector |
| 13 | TCM |
| 14 | Valve housing |
| 15 | Valve plate |
| 16 | Torque converter retaining valve |
| 17 | Clutch return valve |
| 18 | Element seal |
| 19 | Pressure regulator dampers |
| 20 | Intermediate plate |

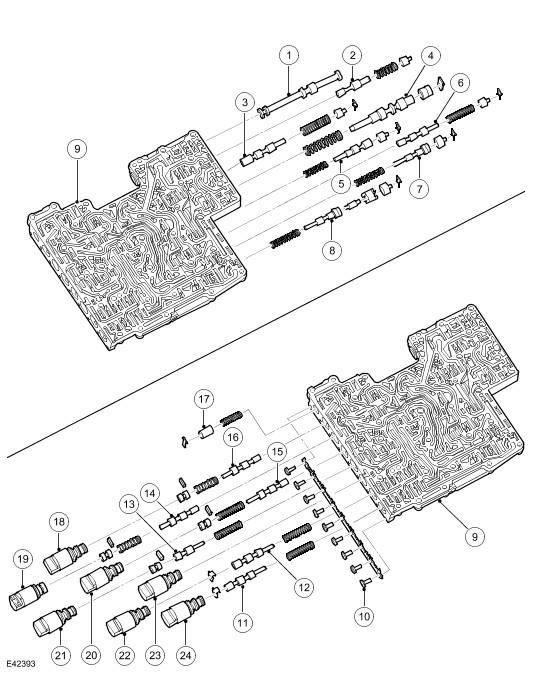

| Item Number | Description |
|---|---|
| 1 | Selector spool valve |
| 2 | Lubricating valve |
| 3 | Torque converter pressure valve |
| 4 | System pressure valve |
| 5 | Torque converter clutch valve |
| 6 | Retaining valve - Clutch E |
| 7 | Clutch valve E |
| 8 | Clutch valve A |
| 9 | Valve housing |
| 10 | Bolts |
| 11 | Retaining valve - Clutch A |
| 12 | Retaining valve - Clutch B |
| 13 | Pressure reducing valve |
| 14 | Shift valve 1 |
| 15 | Retaining valve - Brake D |
| 16 | Shift valve 2 |
| 17 | Damper |
| 18 | EPRS 6 |
| 19 | Solenoid valve 1 |
| 20 | EPRS 4 |
| 21 | EPRS 5 |
| 22 | EPRS 2 |
| 23 | EPRS 3 |
| 24 | EPRS 1 |

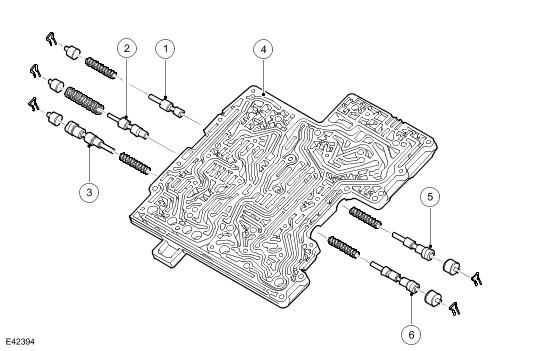

| Item Number | Description |
|---|---|
| 1 | Retaining valve - Brake D2 |
| 2 | Clutch valve - Brake D2 |
| 3 | Clutch valve B |
| 4 | Valve plate |
| 5 | Clutch valve - Brake D1 |
| 6 | Clutch valve - Brake C |
