Single Web Planetary Gear Train
The single web planetary gear train comprises:
- Sunwheel
- Four planetary gears
- Planetary gear carrier (spider)
- Ring gear or annulus.

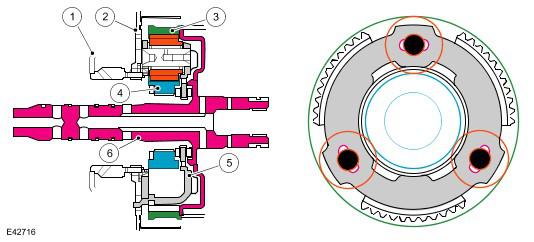

| Item Number | Description |
|---|---|
| 1 | Cylinder |
| 2 | Baffle plate |
| 3 | Ring gear |
| 4 | Sun gear |
| 5 | Planetary gear spider |
| 6 | Torque converter input shaft |

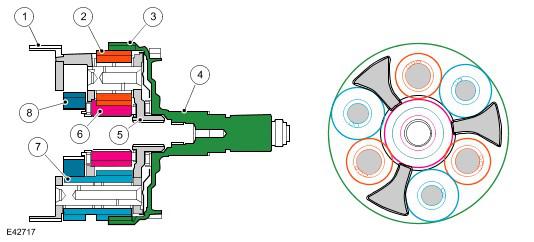

| Item Number | Description |
|---|---|
| 1 | Planetary gear spider |
| 2 | Planetary gears (short) |
| 3 | Ring gear |
| 4 | Output shaft |
| 5 | Planetary gear carrier |
| 6 | Sunwheel |
| 7 | Double planetary gears (long) |
| 8 | Sunwheel |
The double planetary gear train comprises:
- Two sunwheels
- Three short planetary gears
- Three long planetary gears
- Planetary gear carrier
- Ring gear or annulus
