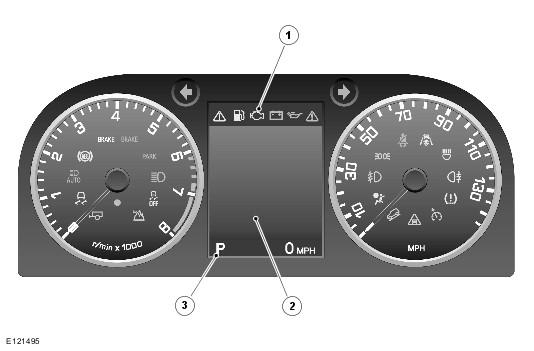

Instrument Cluster
| Item Number | Description |
|---|---|
| 1 | MIL (malfunction indicator lamp) |
| 2 | Message center |
| 3 | Transmission status display |
The instrument cluster is connected to the transmission control module (TCM) via the high speed controller area network (CAN) bus. Transmission status is transmitted by the transmission control module (TCM) and displayed to the driver in one of two displays in the instrument cluster. Refer to Instrument Cluster article.
Malfunction Indicator Lamp
The malfunction indicator lamp (MIL) is located in the tachometer of the instrument cluster. Transmission related faults which may affect the vehicle emissions will illuminate the malfunction indicator lamp (MIL).
The malfunction indicator lamp (MIL) is illuminated by the engine control module (ECM) on receipt of a relevant fault message from the transmission control module (TCM) on the high speed controller area network (CAN). The nature of the fault can be diagnosed using Land Rover approved diagnostic equipment which reads the fault codes stored in the transmission control module (TCM) memory.
Transmission Status Display
The transmission status display is located in the tachometer of the instrument cluster. The display shows the selector lever position or the selected gear when in manual and sport modes.
The following table shows the displays and their descriptions.
| Symbol | Description |
|---|---|
| P | Park selected |
| R | Reverse selected |
| N | Neutral selected |
| D | Drive selected |
| s* | Sport mode selected (* = current gear) |
| 1 | 1st gear selected (manual CommandShift mode) |
| 2 | 2nd gear selected (manual CommandShift mode) |
| 3 | 3rd gear selected (manual CommandShift mode) |
| 4 | 4th gear selected (manual CommandShift mode) |
| 5 | 5th gear selected (manual CommandShift mode) |
| 6 | 6th gear selected (manual CommandShift mode) |
Message Center
The message center is located in the center of the instrument cluster. The message center is a liquid crystal display (LCD) that relays vehicle status and operating information to the driver and can display messages relating to a number of vehicle systems. If a transmission fault occurs, the message GEARBOX FAULT is displayed in the message center. Refer to Information and Message Center article.
